Primeview™

Next generation flyscreen for superior view & strength

Primeview™

Cyclone Primeview flyscreen is developed from ultra-fine high-tensile stainless steel wire, with sought after advantages over traditional flyscreen products.

Our unique manufacturing method produces unsurpassed strand uniformity, with a clean, crisp coating. This provides a sharper, clearer and unobstructed view, giving you the feeling of being outdoors.

Key Benefits

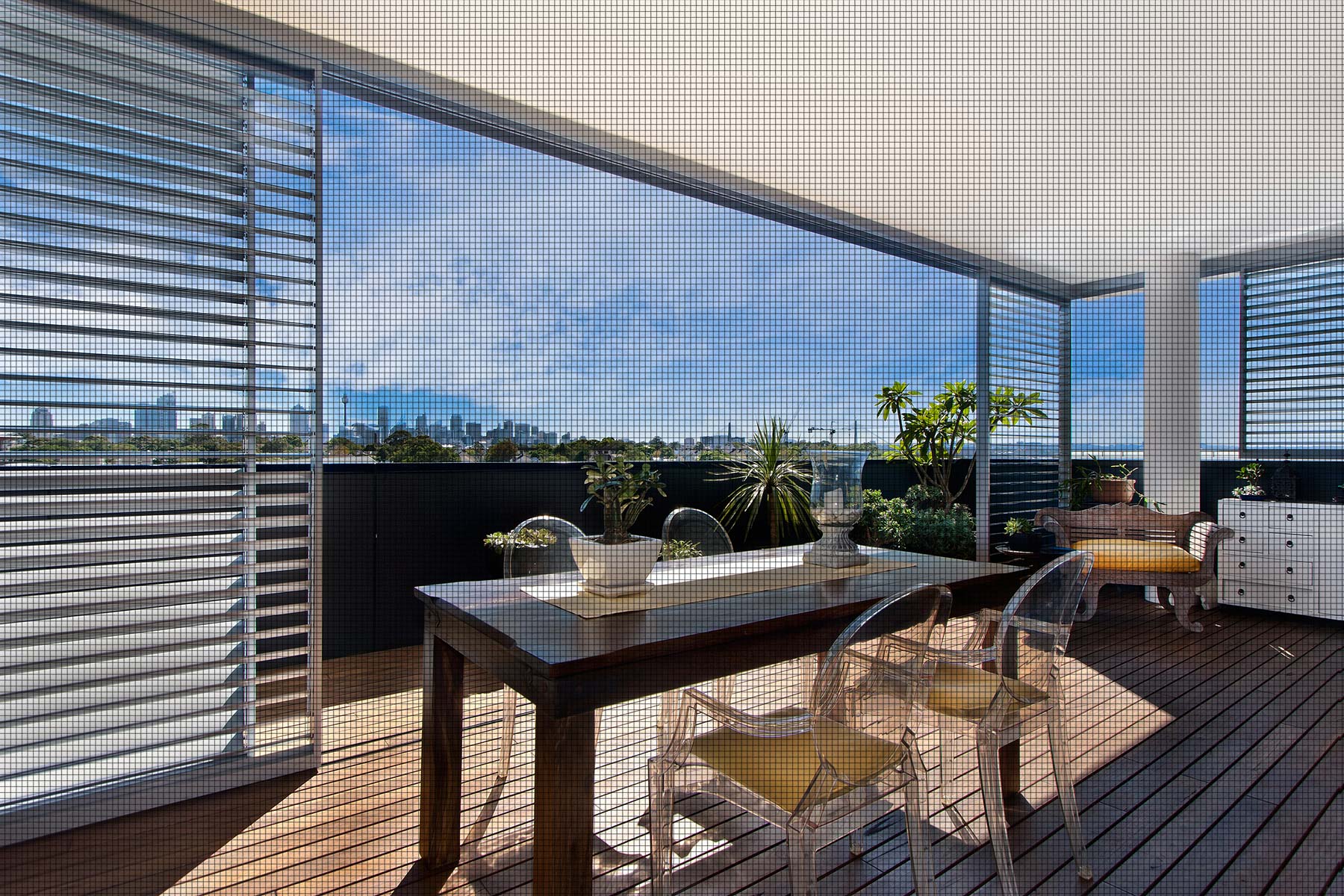

  • 35% clearer view*
  • Higher tension can be achieved*
  • High Productivity: No pre-creasing
  • Reduced Scrap: Patented weave technology provides flawless finish
  • Premium quality super-fine ESD-Coating with even coverage and deep blackness
  • Class 3 Corrosion resistant
Download Tech Spec
2x Clearer
Insect Protection Rating (2/3)

Protection

Visibility Rating (3/3)

Visibility

Airflow Rating (3/3)

Airflow

Strength Rating (2/3)

Strength

Applications

Window Rating
Door Rating

Ideal for coastal corrosion zones

From 1-10km inland along ocean front areas with breaking surf & significant salt spray. May be extended inland to 50km by prevailing winds & local conditions. From 100m to 3–6 km inland for a less sheltered bay or gulf. From 50m-1km inland around sheltered bays.

BAL-FZ Bushfire Attack Level Rated

This product meets the requirements of the Bushfire Attack Levels (BAL's) ranging from BAL-LOW to BAL-FZ. BAL-FZ allows for direct exposure to flames from fire, in addition to heat flux and ember attack.

Ideal for retractable systems

For use on windows and doors. verandahs, patios.

Technical Specifications

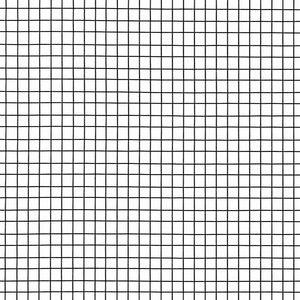

Screen Pattern
Screen Pattern
Download Tech Spec
Material:
SS304 Stainless Steel
Weight:
210gsm
Openness:
78%
Aperture:
1.25 x 1.25mm
Strand Diameter:
0.15mm
Tensile Strength:
720(N/20mm)
Elongation:
30%

Available Sizes

Retail Sizes

Find a retailer
Part Number Width Length
30121760 910mm 2m
30121777 910mm 6m
30121791 1220mm 2m
30121807 1220mm 6m

Commercial Sizes

Fabricator Enquiry
Part Number Width Length
30121098 610mm 30m
30121104 760mm 30m
30121111 810mm 30m
30121128 910mm 30m
30121135 1070mm 30m
30121142 1220mm 30m
30121159 1520mm 30m
30121166 1830mm 30m

Looking for a local retailer in your area? Where to buy
