Duraview Patio

Heavy Duty for Patio & Pool Enclosures

Duraview Patio

Cyclone Duraview™ Patio is manufactured using 420 Denier polyester, making it tear and puncture resistant.

This tough, heavy-gauge polyester can withstand impact and exposure to severe weather conditions making it an excellent choice for verandahs, patios, windows, and doors.

Key Benefits

  • High strength 420 denier polyester
  • 2X stronger than Fibreglass Patio
  • Higher flexibility to withstand impact
  • Longer weather resistance
Download Tech Spec
Insect Protection Rating (2/3)

Protection

Visibility Rating (2/3)

Visibility

Airflow Rating (2/3)

Airflow

Strength Rating (2/3)

Strength

Applications

Door Rating
Patio Rating

Ideal for server sea-shore corrosion zones

Surf beach shoreline regions with very high salt deposition.

This screen can be used as part of a complete window system to satisfy building code in relation to fall protection.

Clauses 3.9.2.5 and D2.24 of the Building Code of Australia detail the situations in which open-able windows require fall prevention measures and the requirement that windows in these instances must meet. The test standard AS5203:2016 -Protection of Openable Window / Fall Prevention Test outlines a window opening will not permit a 125mm sphere to pass through it and resist a horizontal outward force of 250N.

Ideal for retractable systems

For use on windows and doors. verandahs, patios.

Technical Specifications

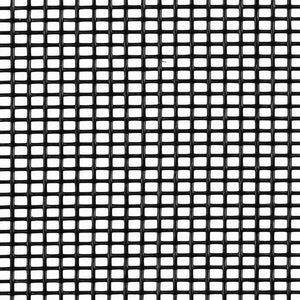

Screen Pattern
Screen Pattern
Download Tech Spec
Material:
420 Denier Polyester
Weight:
145gsm
Openness:
63%
Aperture:
1.08 x 1.48mm
Strand Diameter:
0.33mm
Tensile Strength:
280(N/20mm)
Elongation:
10-20%

Available Sizes

Retail Sizes

Find a retailer
Part Number Width Length
30121999 1830mm 3m

Commercial Sizes

Fabricator Enquiry
Part Number Width Length
30122002 1830mm 30m
30123122 2140mm 30m
30123139 2440mm 30m
30123146 2740mm 30m
30123153 3050mm 30m
30123160 3200mm 30m
