Duraview™

Next generation heavy duty synthetic

Duraview™

Cyclone Duraview™ delivers extra strength and durability, over most other traditional flyscreens.

This tough, heavy-gauge polyester mesh is engineered to withstand continued exposure to severe weather conditions as well as being more resistant to everyday wear and tear.

Key Benefits

  • 4X stronger than Fibreglass
  • 100% VOC-free: No chemical smell
  • High thermal resistance -25°C to 80°C
  • Self-cleaning technology keeps screen cleaner for longer
  • Thermo-Bonded: No warped strands
Download Tech Spec
Insect Protection Rating (2/3)

Protection

Visibility Rating (2/3)

Visibility

Airflow Rating (2/3)

Airflow

Strength Rating (2/3)

Strength

Applications

Window Rating
Door Rating

Ideal for server sea-shore corrosion zones

Surf beach shoreline regions with very high salt deposition.

This screen can be used as part of a complete window system to satisfy building code in relation to fall protection.

Clauses 3.9.2.5 and D2.24 of the Building Code of Australia detail the situations in which open-able windows require fall prevention measures and the requirement that windows in these instances must meet. The test standard AS5203:2016 -Protection of Openable Window / Fall Prevention Test outlines a window opening will not permit a 125mm sphere to pass through it and resist a horizontal outward force of 250N.

Ideal for retractable systems

For use on windows and doors. verandahs, patios.

Technical Specifications

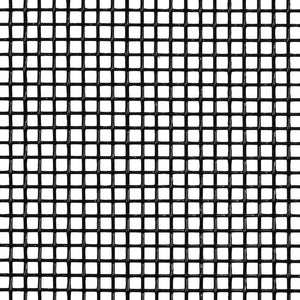

Screen Pattern
Screen Pattern
Download Tech Spec
Material:
Bicomponent Monofilament
Weight:
145gsm
Openness:
58%
Aperture:
1.21 x 1.21mm
Strand Diameter:
0.38mm
Tensile Strength:
400(N/20mm)
Elongation:
15%

Available Sizes

Retail Sizes

Find a retailer
Part Number Width Length
30122729 910mm 2m
30122736 910mm 6m
30122743 1220mm 2m
30122750 1220mm 6m

Commercial Sizes

Fabricator Enquiry
Part Number Width Length
30123184 910mm 30m
